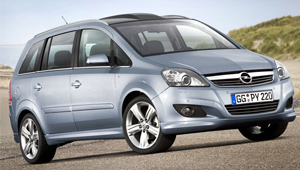

Opel Zafira Overview

Opel Zafira The new Opel Zafira OPC made its world premiere at the 2005 Geneva Motor Show together with the second-generation Zafira and the Astra OPC. The seven-seat sports van, to be launched in the fall of 2005, is developed for top performance and shows this with its striking, dynamic looks. It is powered by the new 176 kW/240 hp 2.0-liter gasoline Turbo engine, which is coupled with a six-speed manual transmission as in the Astra OPC. The powerful engine with maximum torque of 320 Newton meters takes the Zafira OPC from zero to 100 in just 7.8 seconds, and with a top speed of 231 km/h, makes it the fastest production van in Europe.

Superb agility and active safety are ensured by the standard IDSPlus chassis (Interactive Driving System) with electronic CDC (Continuous Damping Control) and the networking of all electronic chassis systems. Large disk brakes (front: 321 mm, internally ventilated / rear: 278 mm) with brake calipers painted in characteristic OPC blue ensure powerful and effective deceleration.

Like its predecessor, the Zafira OPC is a unique combination of a sporty, fun-to-drive van and a spacious, flexible seven-seater. The OPC van benefits from the ingenious and easy-to-use Flex7 seating system which allows the Zafira to be turned from a seven to a six, five, four, three or two-seater in a matter of seconds without having to remove or cumbersomely stow away the seats.

The Opel Zafira OPC's exclusive look is underlined by the selection of exterior opel accessories available - arden blue, black, magma red and silver, the typical OPC honeycomb grille, a dynamically designed bumper with a large, central air intake and integrated fog lights, as well as an aerodynamically optimized roof aerofoil. Its sporty appearance is further enhanced by special 18-inch alloy wheels with 225/40 ZR 18 (19-inch optional) tires, strongly profiled side sills, a distinctive lower rear panel and a twin exhaust system with trapezoidal tailpipes.

The Zafira OPC's interior is sporty and elegant: driver and front seat passenger enjoy the comfort and support of Recaro sport seats in two-tone leather/fabric (full leather optional), which also provide effective lateral support in fast curves. The combinations available are arden blue/black and silver/black. Decor strips on the instrument panel and door trim are color-coordinated to the seats, available in arden blue, black or silver. The leather sport steering wheel and gearshift lever are newly designed and carry the OPC logo - as do the door sill trims and chrome-ringed instruments with blue needles.

Opel Zafira Accessories And Features

Safety And Economy
Engine size: 1910 ccm (116.55 cubic inches)
Fuel type: Diesel
Fuel mixed driving: 6.4 litres/100 km (37.04 miles per gallon)
Drive: Front wheels
Transmission: 6-speed automatic or 6-speed manual
Airbags: 4 - Front & side airbags
Engine And Transmission
Engine location: Front, transverse
Displacement: 1910 ccm (116.55 cubic inches)
Engine type: Inline, 4 cylinder
Max power: 150.00 PS (110 kW or 148 HP) at 4000 Rev. per min.
Max torque: 320.00 Nm (32.6 kgf-m or 236.0 ft.lbs) at 2000 Rev. per min.
Compression: 17.5:1
Bore x stroke: 82.0 x 90.4 mm (3.2 x 3.6 inches)
Fuel system: Turbo
Valves per cylinder: 2
Fuel control: Double overhead cam (DOHC)
Lubrication system: Wet sump
Cooling system: Liquid
Gearbox: 6-speed automatic or 6-speed manual
Speed and acceleration
Top speed: 202.0 km/h (125.5 mph)
0-100 km/h (0-62 mph): 10.4 seconds
Power/weight ratio: 0.0921 PS/kg
Exterior And Interior
Max no. of doors: 5
Passenger space: 4760 litres (1,258 gallons)
Cargo space: 140 litres (37 gallons)
Optional cargo space: 1820 litres (481 gallons)
Aerodynamic dragcoefisient: 0.3
Steering, Brakes And Tires
Steering: Traction control. Electronic stabilasation program (ESP). Traction control. Electronic stabilasation program (ESP). Traction control. Electronic stabilasation program (ESP)
Front brakes: Ventilated disks
Rear brakes: Disks
Brake details: Antiblocking system (ABS). Antiblocking system (ABS). Antiblocking system (ABS)
Front tire dimensions: 205/55-R16
Rear tire dimensions: 205/55-R16
Dimensions And Weight
Weight: 1628 kg (3,589.1 pounds)
Max weight with load: 2205 kg (4,861.2 pounds)
Towing weight: 1500 kg (3,306.9 pounds)
Overall length: 4470 mm (176.0 inches)
Overall width: 1810 mm (71.3 inches)
Overall height: 1650 mm (65.0 inches)
Wheelbase: 2710 mm (106.7 inches)
Fuel capacity: 58.0 litres (15.32 gallons)
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 15.5
Lock to Lock Turns (Steering) 3.40
Turning Diameter - Curb to Curb (ft) 36.8
Turning Diameter - Wall to Wall (ft) - TBD -
Suspension Type - Front MacPherson Strut
Suspension Type - Rear Torsion Beam
Suspension Type - Front (Cont.) w/Stabilizer Bar
Suspension Type - Rear (Cont.) w/Stabilizer Bar
Shock Absorber Diameter - Front (mm) - TBD -
Shock Absorber Diameter - Rear (mm) - TBD -
Stabilizer Bar Diameter - Front (in) 1.02
Stabilizer Bar Diameter - Rear (in) 0.79
Front Tire Size P225/60R17
Front Tire Size P215/65R16
Rear Tire Size P225/60R17
Rear Tire Size P215/65R16
Spare Tire Size T155/80D17
Dead Weight Hitch - Max Trailer Wt. (lbs) 3500
Dead Weight Hitch - Max Tongue Wt. (lbs) 350
Drivetrain Front Wheel Drive
Trans Type 5
Trans Description Cont. Automatic
First Gear Ratio (:1) 4.24
Second Gear Ratio (:1) 2.36
Third Gear Ratio (:1) 1.52
Fourth Gear Ratio (:1) 1.05
Fifth Gear Ratio (:1) 0.76
Reverse Ratio (:1) 3.38
Final Drive Axle Ratio (:1) 3.08
EPA Classification 2WD Minivans
Weight Information
Base Curb Weight (lbs) 4177
Front Wheel Size (in) 16 x - TBD -
Front Wheel Size (in) 17 x 6.5
Front Wheel Size (in) 16 x 6.5
Rear Wheel Size (in) 16 x - TBD -
Rear Wheel Size (in) 17 x 6.5
Rear Wheel Size (in) 16 x 6.5
Spare Wheel Size (in) T155/80R17
Front Wheel Material Alloy
Front Wheel Material Steel
Rear Wheel Material Alloy
Rear Wheel Material Steel
Spare Wheel Material Steel
